RH85-2.23
Description:
Large action range and fast dynamic response
Compact structure and strong overload capacity
Adopts bus structure, easy to expand
Parameter
| Product model | RH 85-2.23 |
| Structure | Vertical multi-joint |
| Control axis | 6 axis |
| Maximum load | 85kg |
| Repeat positioning accuracy | ±0.05mm |
| Maximum speed | 1 axis 170°/sec 2 axis 90°/sec 3 axis 140°/sec 4 axis 175°/sec 5 axis 175°/sec 6 axis 300°/sec |

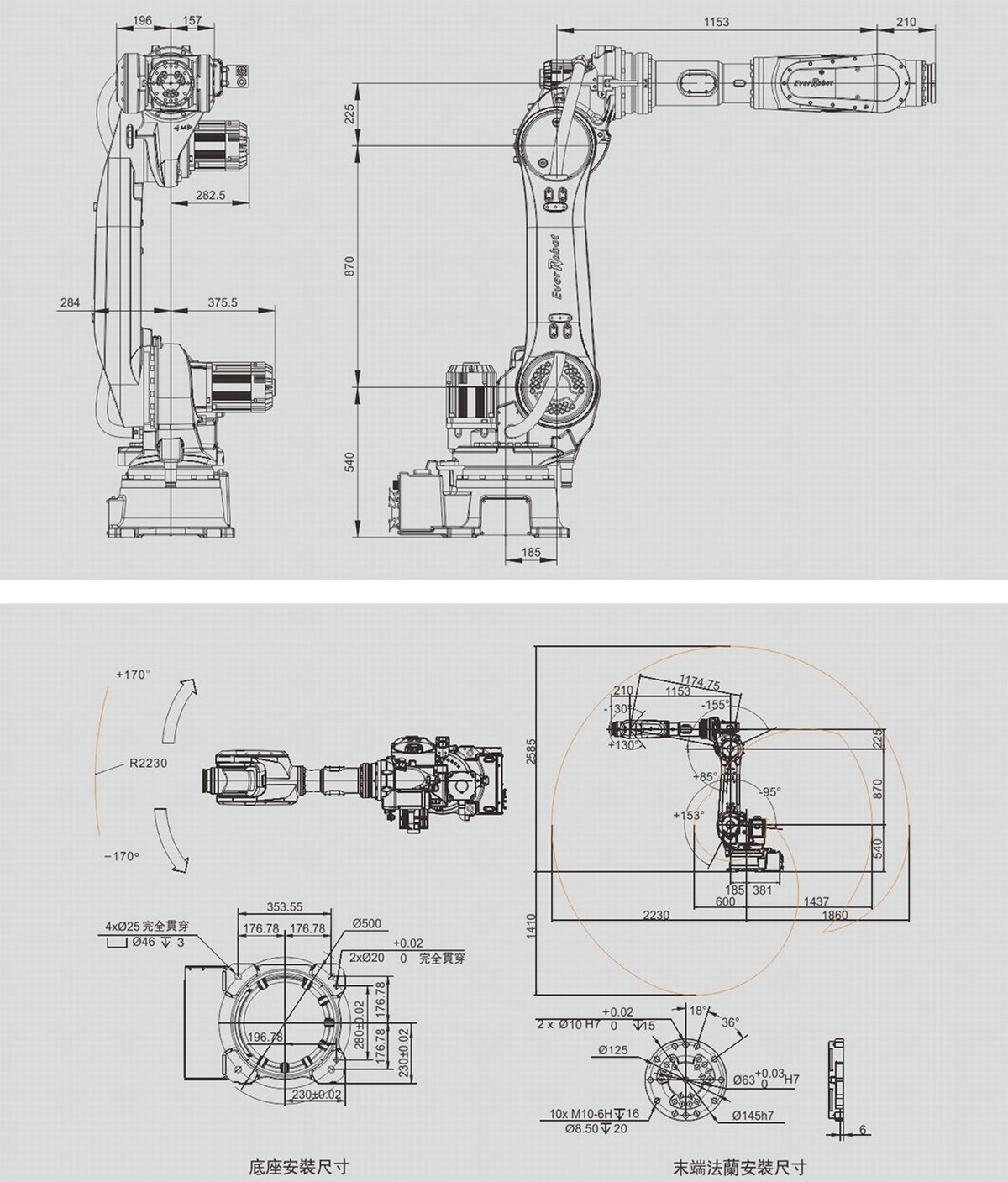

| Range of motion | 1 axis ±170° 2 axis +153°/-95° 3 axis +85°/-155° 4 axis ±210° 5 axis ±130° 6-axis ±360° |
| Temperature | 0-45℃ |
| Humidity | 20%-80% (no condensation) |
| Installation form | Ground installation, inclined installation, suspension installation |
| Machine weight | 645kg |
